PVC frame

Why choose a PVC frame for your glazing?

PVC is a material commonly used for its many properties. PVC frames for cold rooms and isothermal enclosures are resistant, easy to maintain and offer a good quality/price ratio for a long life. PVC frames are perfectly suited for glazing in cold rooms or isothermal enclosures.

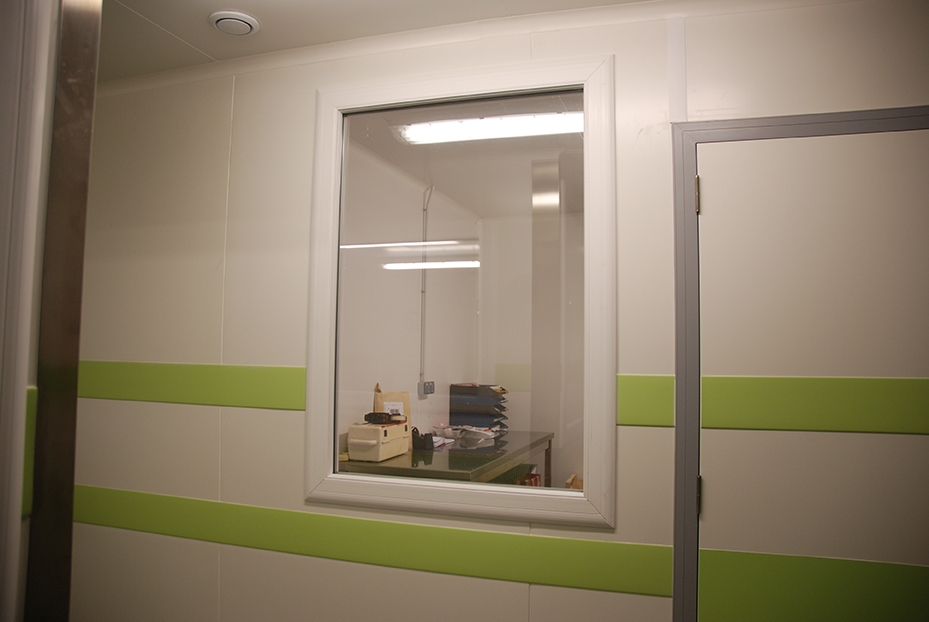

View on a PVC frame cold room

Indoor / Outdoor: the PVC frame for cold rooms or isothermal enclosures fits

Dagard’s PVC frames can be adapted to external walls and glazing as well as internal partitions and glazing. They can be installed on 60 mm to 120 mm thick refrigeration panels

The Dagard PVC frame is available in fixed or sliding supports. It is also possible to choose between French and Italian opening. It is double flush.

PVC cold room glazing frame

Glazing adapted to Dagard PVC windows

Have you chosen a Dagard PVC frame? Find out below about suitable double glazing.

Double glazing consists of two 4mm annealed glass panes at the base, spaced apart on the inside by a 16mm gap, making a total thickness of 24mm.

The UG coefficient (or Uglass coefficient, which measures the heat transmission performance at the centre of the glazing, in watts per square metre Kelvin) is 2.7W/m².K.

The dimensions of the glazing clear are between 386 and 2386 mm in width and between 586 and 1286 mm in height.

On request, additional specificities can be added to the glazing of your PVC cold room or isothermal enclosure: it can be laminated, have improved thermal performance with coated glass or argon gas inserted in the space between the two panes.
